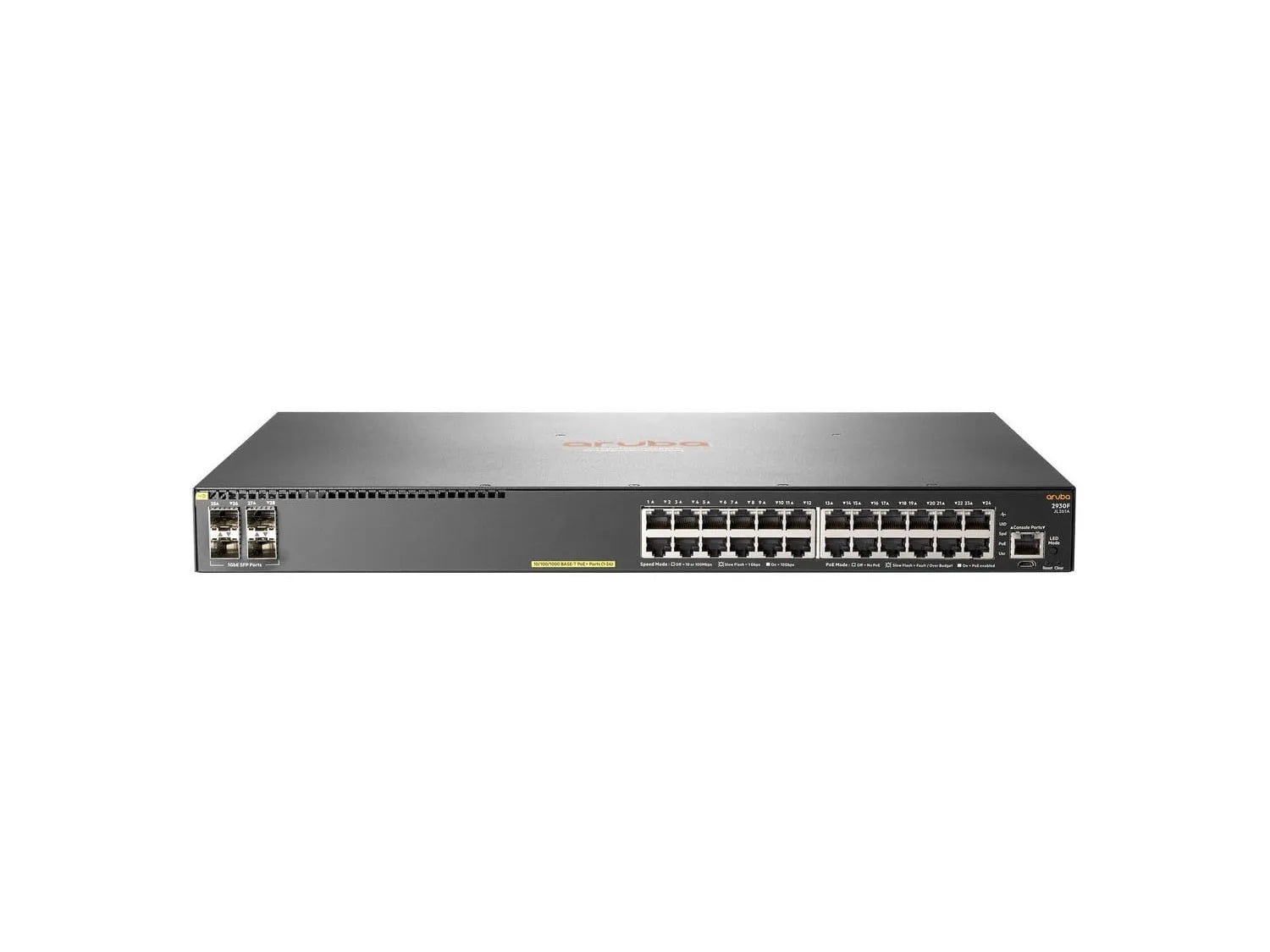

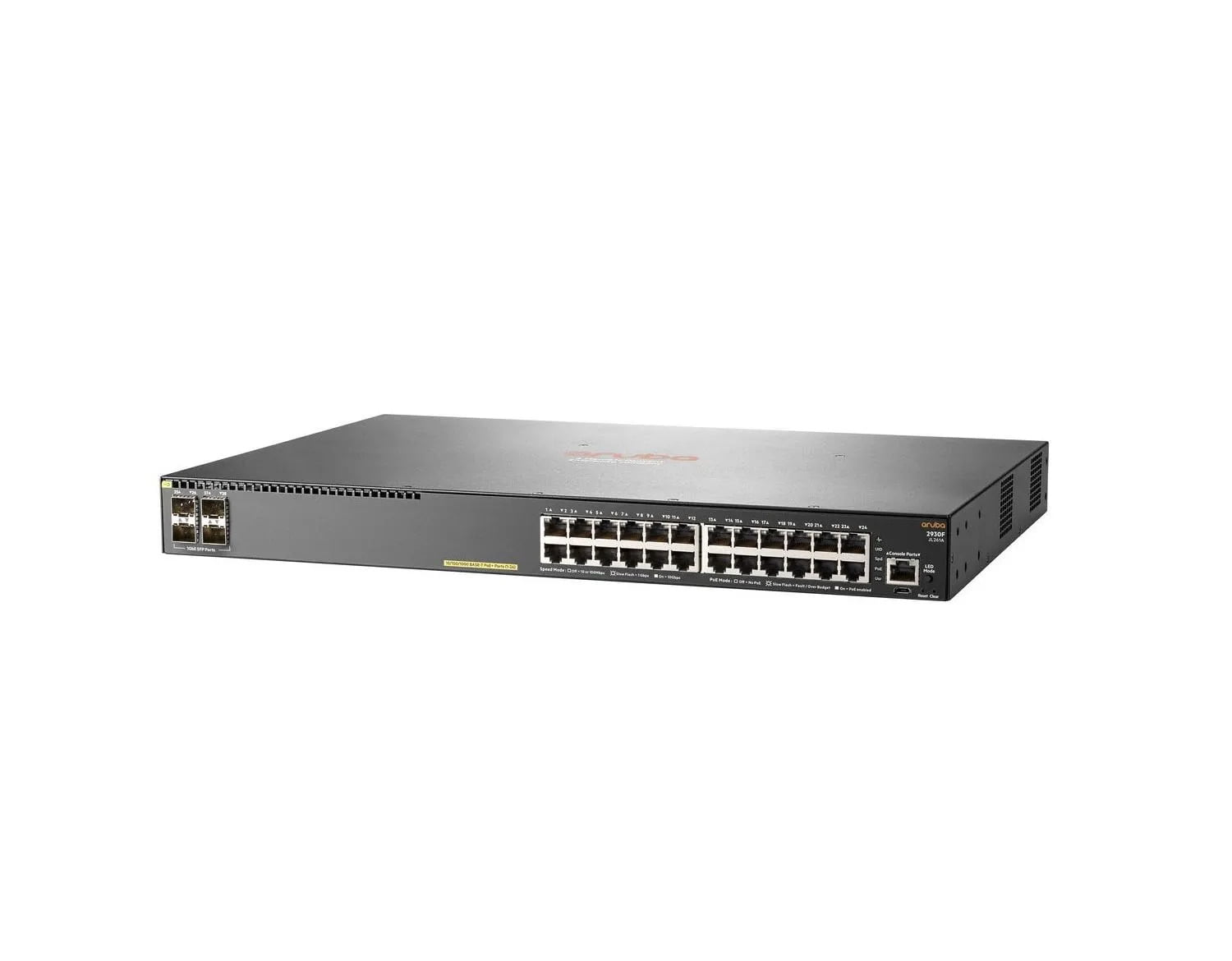

Aruba 2930F 24G PoE+ 4SFP Layer 3 Access Switch, 370W PoE Budget (JL261A)
0,00 EGP
The Aruba 2930F 24G PoE+ switch (JL261A) delivers 24 Gigabit PoE+ ports (370W budget) and 4 dedicated 1G SFP uplinks with a 56 Gbps switching capacity. Running the Aruba ProVision ASIC with VSF virtual stacking, Access OSPF, and RIP routing, it provides enterprise digital workplace connectivity.
Description
The Aruba 2930F 24G PoE+ 4SFP Switch (JL261A) is an enterprise-grade Layer 3 access switch engineered with 370W of PoE+ power, Virtual Switching Framework (VSF) stacking, and advanced routing to support mobile-first digital enterprise workplaces.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | Aruba 2930F 24G PoE+ 4SFP (JL261A) |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ45 Gigabit Ethernet PoE+ Ports |
| Uplink Interfaces | 4 × 1G SFP Dedicated Optical Transceiver Slots |
| PoE Power Budget | 370W Total PoE+ Budget (IEEE 802.3at / 802.3af Compliant) |
| Switching Bandwidth | 56 Gbps Non-Blocking Wire-Speed |
| Throughput / Packet Rate | 41.7 Mpps |
| Hardware Engine | Aruba ProVision ASIC with Dual Core ARM Coretex A9 @ 1016 MHz |
| Layer 3 Routing | Access OSPF, Static IPv4/IPv6 Routing, RIPv1/RIPv2/RIPng, Policy-Based Routing |
| Virtual Stacking | Virtual Switching Framework (VSF) Stacking up to 8 Switches |
| Security Management | Aruba ClearPass Policy Manager Integration, 802.1X, Dynamic ARP Protection, ACLs |
| Management Interface | Aruba Central (Cloud), Aruba AirWave, Full CLI, Web GUI, SNMP v1/v2c/v3 |
| Form Factor | Standard 1U 19-Inch Rackmount Enclosure with Internal Power Supply |
Package Contents
- Switch Unit: 1 × Aruba 2930F 24G PoE+ 4SFP Switch (JL261A)
- Power Cable: 1 × Heavy-Duty Regional AC Power Cord
- Mounting Kit: 1 × 19-Inch 1U Rackmount Bracket Kit with Screws and Console Cable
- Documentation: Safety and Regulatory Information Guide
Recommended Applications
- Enterprise Digital Workplaces: Seamless wired/wireless convergence with automated Aruba AP profiling.
- High-Density PoE+ Powering: Supplying power to 24 Wi-Fi 6 access points, smart lighting, and PTZ cameras.
- VSF Virtual Stacking: Virtualizing multiple edge switches into a single logical device for simplified topology.
- Secure Branch Office Access: Zero Touch Provisioning via Aruba Central cloud management with no license fees.
