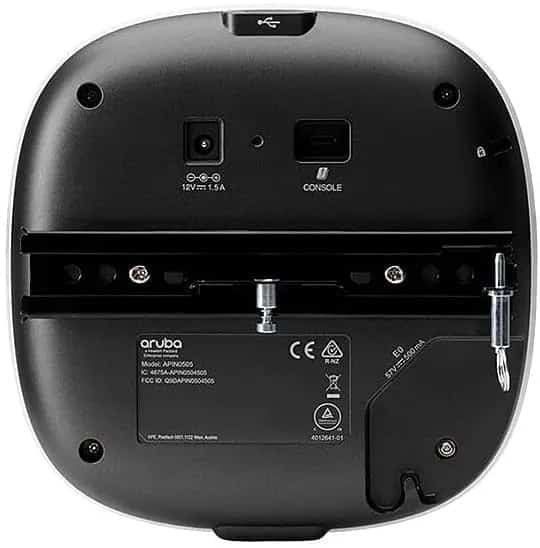

Aruba AP-505 Dual-Radio Wi-Fi 6 (802.11ax) 2×2:2 Unified Campus Access Point (R2H25A)
0,00 EGP
The Aruba AP-505 campus access point (R2H25A) delivers enterprise Wi-Fi 6 (802.11ax) performance with 2×2:2 MU-MIMO, OFDMA, and up to 1.774 Gbps speed. Featuring Air Slice QoS, ClientMatch AI roaming, Zigbee, and BLE IoT radios, it provides up to 400% greater capacity in dense campuses.
Description
The Aruba AP-505 Unified Campus Access Point (R2H25A) is an enterprise-class Wi-Fi 6 (802.11ax) access point engineered with AI-powered ClientMatch, Air Slice application assurance, and integrated IoT radios for high-density campus environments.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | Aruba AP-505 / R2H25A |
| Wi-Fi Standard | Wi-Fi Certified 6 (IEEE 802.11ax) Dual-Band Dual-Radio |
| MIMO & Spatial Streams | 2 × 2:2 MU-MIMO with OFDMA on 5 GHz & 2 × 2:2 MIMO with OFDMA on 2.4 GHz |
| Peak Aggregate Data Rate | Up to 1.774 Gbps (1.201 Gbps on 5 GHz + 574 Mbps on 2.4 GHz) |
| Integrated IoT Radios | Built-In Bluetooth 5.0 (BLE) and Zigbee (802.15.4) Radios for IoT Telemetry |
| AI & RF Optimizations | Aruba ClientMatch AI Roaming, Air Slice Application QoS, Green AP Energy Savings |
| Ethernet Uplink Port | 1 × 10/100/1000 Mbps Gigabit Ethernet (RJ45 with 802.3af/at PoE-PD) |
| Enterprise Security | WPA3, Enhanced Open (OWE), Dynamic Segmentation, Policy Enforcement Firewall (PEF) |
| Deployment Modes | Unified AP (Controller-Managed ArubaOS, Controllerless InstantOS, or Aruba Central Cloud) |
Package Contents
- Access Point: 1 × Aruba AP-505 Unified Campus Wireless Access Point
- Mounting Hardware: Ceiling Grid Mount Clip (Suspended Ceiling Tile Rails)
- Documentation: Installation and Regulatory Compliance Guide
Recommended Applications
- High-Density University & Enterprise Campuses: Handling hundreds of concurrent mobile and IoT clients with OFDMA.
- Healthcare & Hospital Facilities: Asset tracking and patient telemetry via integrated BLE and Zigbee radios.
- Mission-Critical Wireless Networks: Air Slice application QoS guaranteeing bandwidth for voice and video.
- Cloud-Managed Enterprise Deployments: Unified policy enforcement and AI RF management via Aruba Central.
