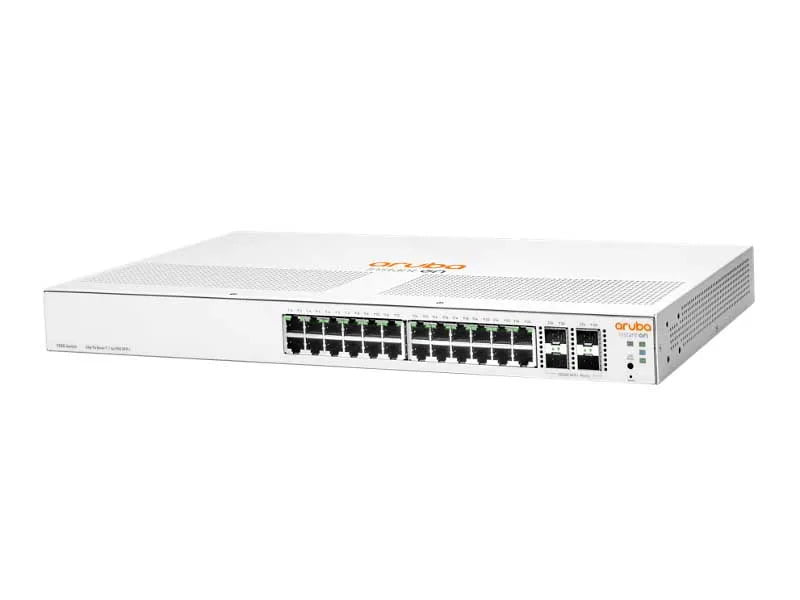

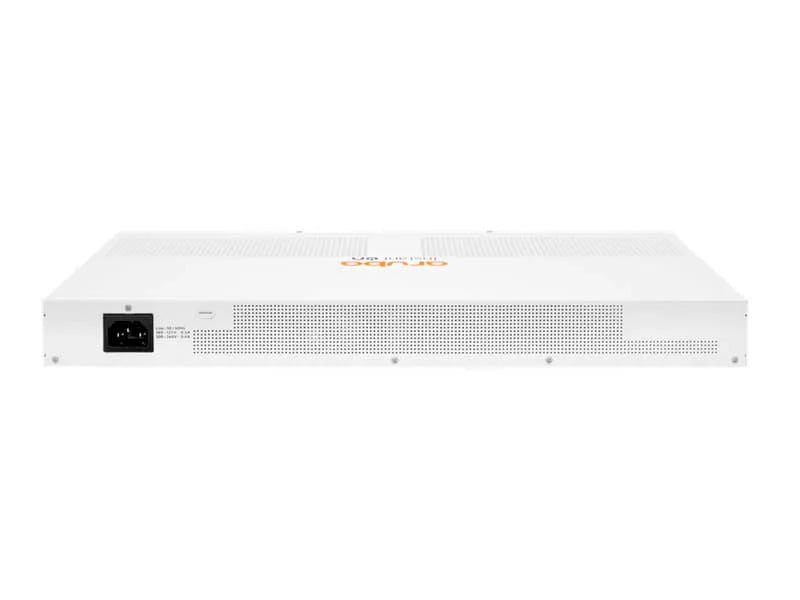

Aruba Instant On 1930 24G 4SFP/SFP+ Smart Managed Switch (JL682A)
0,00 EGP
The Aruba Instant On 1930 24G switch (JL682A) delivers 24 Gigabit RJ45 ports and 4 high-speed 1G/10G SFP+ fiber slots with a 128 Gbps switching capacity. Managed via the Instant On mobile app, cloud portal, or local web GUI, it provides advanced Layer 2+ switching and security for growing businesses.
Description
The Aruba Instant On 1930 24G 4SFP/SFP+ Switch (JL682A) is an advanced, smart-managed Layer 2+ Gigabit switch engineered to deliver high-performance wired connectivity, 10G optical uplinks, and seamless cloud management for growing commercial networks.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | Aruba Instant On 1930 24G 4SFP/SFP+ (JL682A) |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| Uplink Interfaces | 4 × 1G / 10G SFP/SFP+ Dedicated Optical Uplink Slots |
| Switching Capacity | 128 Gbps Wire-Speed Non-Blocking Bandwidth |
| Forwarding Rate | 95.23 Mpps (64-Byte Packets) |
| Layer 2+ Capabilities | VLAN Support, Link Aggregation (LACP), Spanning Tree (STP/RSTP/MSTP), Static IPv4 Routing |
| Security Management | IEEE 802.1X Authentication, RADIUS, Automatic Denial-of-Service (DoS) Protection, ACLs |
| Management Architecture | Aruba Instant On Mobile App, Cloud-Based Web Portal, or On-Premises Local Web GUI |
| Form Factor & Power | 1U 19-Inch Rackmount Metal Chassis with Internal Power Supply |
Package Contents
- Switch Unit: 1 × Aruba Instant On 1930 24G 4SFP/SFP+ Switch (JL682A)
- Power Assembly: 1 × Country-Specific AC Power Cord
- Mounting Kit: 1 × 19-Inch 1U Rackmount Bracket Kit with Screws and Rubber Feet
- Documentation: Quick Start Guide and Safety Pointers
Recommended Applications
- High-Speed Small Business LANs: Connecting office PCs, NAS servers, and network printers at full Gigabit speeds.
- 10G Fiber Uplink Aggregation: Eliminating network bottlenecks by linking to core aggregation switches at 10 Gbps.
- Cloud-Managed Multi-Site IT: Remote configuration and monitoring across distributed branch offices via mobile app.
- Converged Voice & Data: 802.1p traffic prioritization and Voice VLAN for high-quality VoIP communications.
