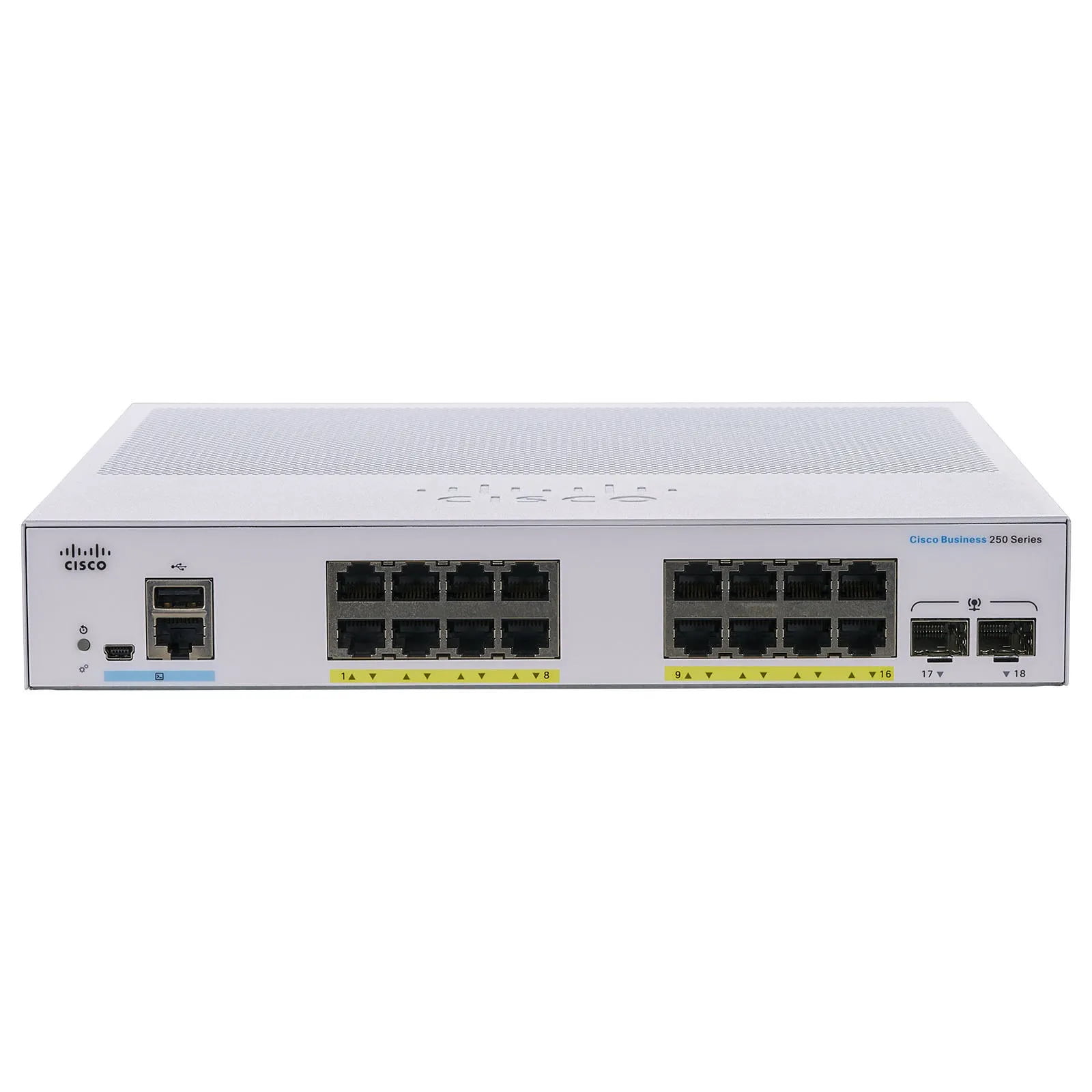

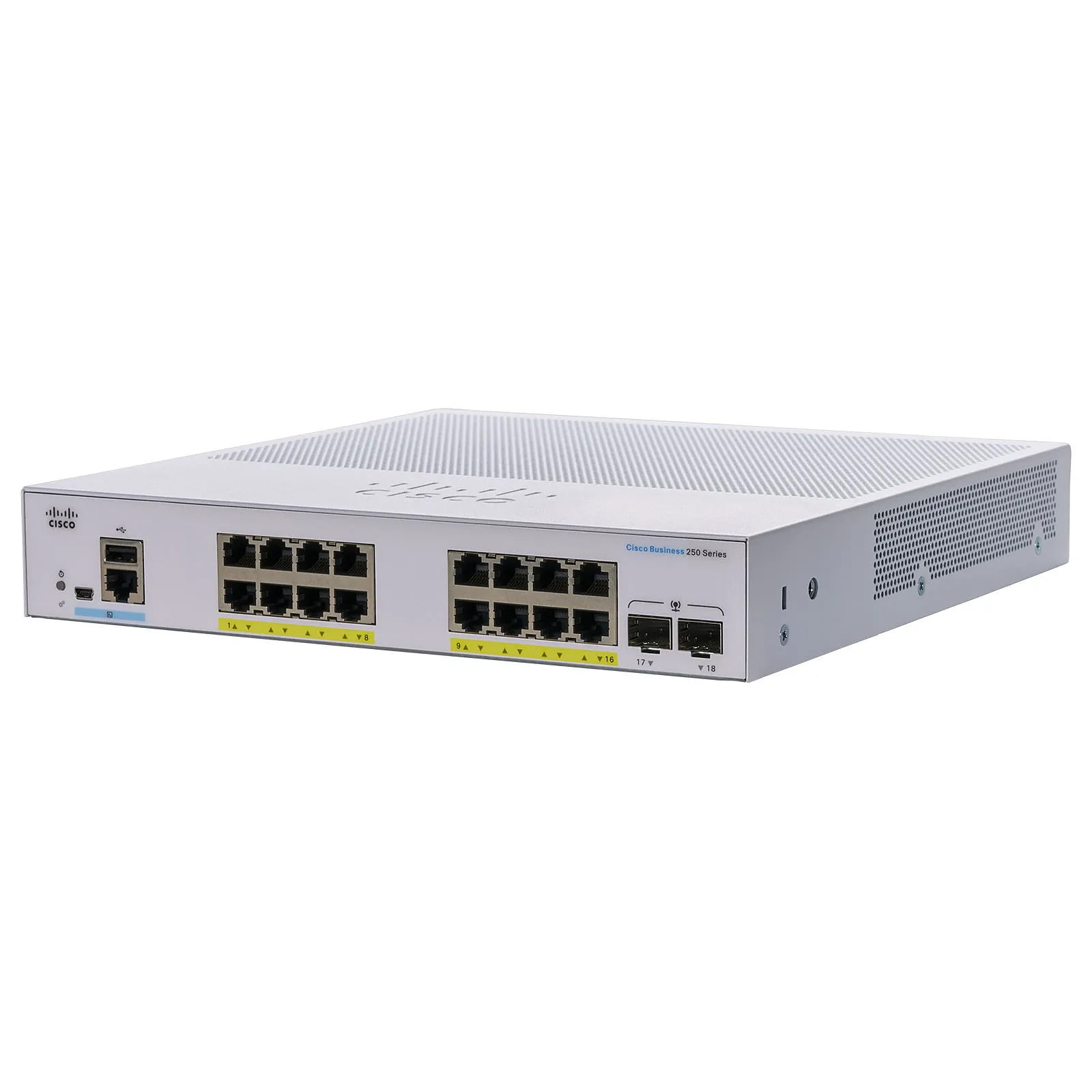

Cisco Business CBS220-16P-2G Smart Switch, 16-Port Gigabit PoE+ (130W) & 2x 1G SFP (CBS220-16P-2G-EU)
0,00 EGP
The Cisco Business CBS220-16P-2G smart switch (CBS220-16P-2G-EU) features 16 Gigabit PoE+ ports (130W budget) and 2 dedicated 1G SFP uplinks with a 36 Gbps switching capacity. Providing intuitive web management, VLANs, QoS, and ACL security, it powers PoE cameras and access points reliably.
Description
The Cisco Business CBS220-16P-2G Smart Switch (CBS220-16P-2G-EU) is a versatile Layer 2 smart switch engineered with 16 PoE+ ports and optical SFP uplinks to deliver business-class power and network intelligence.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | CBS220-16P-2G-EU (CBS22016P2GEU) |
| Total Network Ports | 16 × 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| PoE Capability | 16 × 802.3at PoE+ Ports with 130W Dedicated Power Budget |
| Uplink Interfaces | 2 × 1G SFP Dedicated Optical Slots |
| Switching Bandwidth | 36 Gbps Wire-Speed Capacity |
| Forwarding Rate | 26.78 Mpps |
| Layer 2 Intelligence | 802.1Q VLANs, Link Aggregation (LACP), STP/RSTP/MSTP, IGMP Snooping |
| Network Security | Access Control Lists (ACLs), 802.1X Port Security, DoS Prevention |
| Management Interface | Cisco Business Dashboard, Intuitive Web GUI, SNMP v1/v2c/v3 |
| Form Factor & Power | 1U Rackmount Enclosure with Internal Universal Power Supply |
Package Contents
- Switch Unit: 1 × Cisco Business CBS220-16P-2G Smart Switch
- Power Cable: 1 × Regional AC Power Cord
- Mounting Kit: 1 × 19-Inch Rackmount Bracket Kit with Screws and Rubber Feet
- Documentation: Quick Start Guide and Pointer Card
Recommended Applications
- IP Telephony & Unified Comms: Powering 16 Cisco IP phones with QoS voice traffic prioritization.
- Wireless Access Networks: Supplying PoE+ power and Gigabit bandwidth to Wi-Fi 6 access points.
- CCTV Surveillance Arrays: Centralizing power and data for commercial security camera systems.
- Branch Office Backbones: Secure, managed network distribution with 2 fiber optic uplinks.
