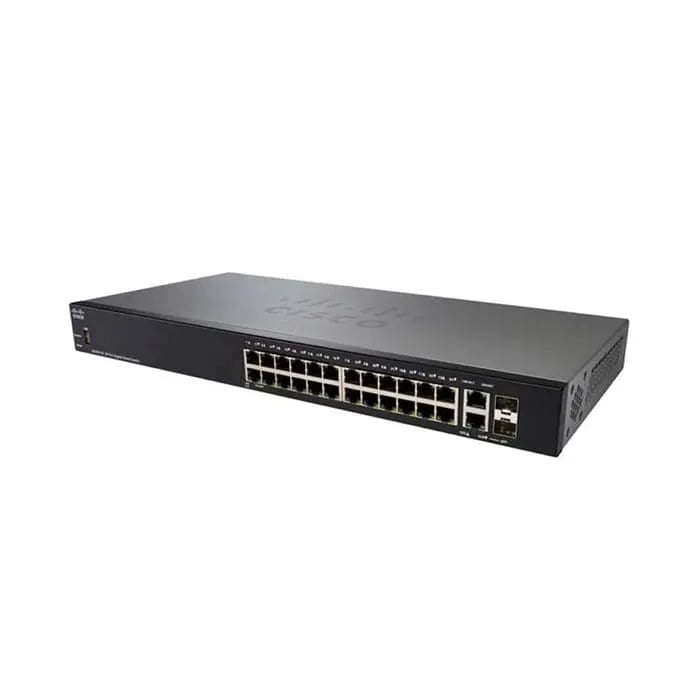

Cisco 220 Series SG220-26P Smart Managed Switch, 24-Port Gigabit PoE+ (180W) & 2x Combo SFP (SG220-26P-K9-EU)
0,00 EGP
The Cisco SG220-26P smart managed switch (SG220-26P-K9-EU) features 24 Gigabit PoE+ ports (180W budget) and 2 Gigabit RJ45/SFP combo uplink ports with a 52 Gbps switching capacity. Providing an intuitive web interface, VLANs, and QoS, it delivers cost-effective managed PoE networking.
Description
The Cisco SG220-26P Smart Managed Switch (SG220-26P-K9-EU) is a reliable Layer 2 smart switch engineered with 180W of PoE+ power and dual Gigabit SFP combo ports to provide affordable business-class networking.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | SG220-26P-K9-EU (SG22026PK9EU) |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ45 Gigabit Ethernet Ports |
| PoE Power Budget | 180W Total PoE+ Budget (802.3at PoE+ / 802.3af PoE Compliant) |
| Uplink Interfaces | 2 × Gigabit RJ45 / SFP Combo Uplink Ports |
| Switching Capacity | 52 Gbps Wire-Speed Bandwidth |
| Forwarding Rate | 38.69 Mpps |
| Layer 2 Capabilities | 802.1Q VLANs, Port Trunking / Link Aggregation (LACP), Spanning Tree (STP/RSTP) |
| Security Features | ACLs, 802.1X Port Authentication, Broadcast Storm Control, DoS Prevention |
| Management Interface | Intuitive Web-Based Management Interface, SNMP v1/v2c/v3, RMON, Telnet |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis with Internal Power Supply |
Package Contents
- Switch Unit: 1 × Cisco SG220-26P Smart Managed Switch
- Power Cable: 1 × AC Power Cable
- Mounting Hardware: 1 × 19-Inch 1U Rackmount Bracket Kit with Screws and Rubber Feet
- Documentation: Quick Start Guide and Warranty Pointer Card
Recommended Applications
- Small & Midsize Business LANs: Connecting and powering office workstations, IP phones, and APs.
- Commercial CCTV Surveillance: Supplying 180W PoE+ power to up to 24 IP security cameras.
- Managed Fiber Uplinks: Flexible copper or optical fiber uplinks via 2 combo SFP ports.
- Traffic Prioritization: 802.1p QoS prioritizing VoIP voice traffic and video streaming.
