ProRack 6U Wall Mount Network Cabinet with Glass Door, 600×450mm (PR-W6406)
0,00 EGP
The ProRack 6U wall mount cabinet (PR-W6406) is manufactured from heavy-duty cold-rolled steel supporting an 800KG static load. Featuring a 5mm tempered glass front door, it combines clear visual inspection with physical security. Comes turnkey with a roof exhaust fan, 6-outlet PDU, and fixed shelf.
Description
The ProRack 6U Wall Mount Cabinet (PR-W6406) is a versatile, space-saving IT enclosure designed to house and safeguard 19-inch networking equipment, patch fields, and security systems in commercial and enterprise environments.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | PR-W6406 |
| Rack Capacity | 6U (Standard 19-inch EIA-310-D) |

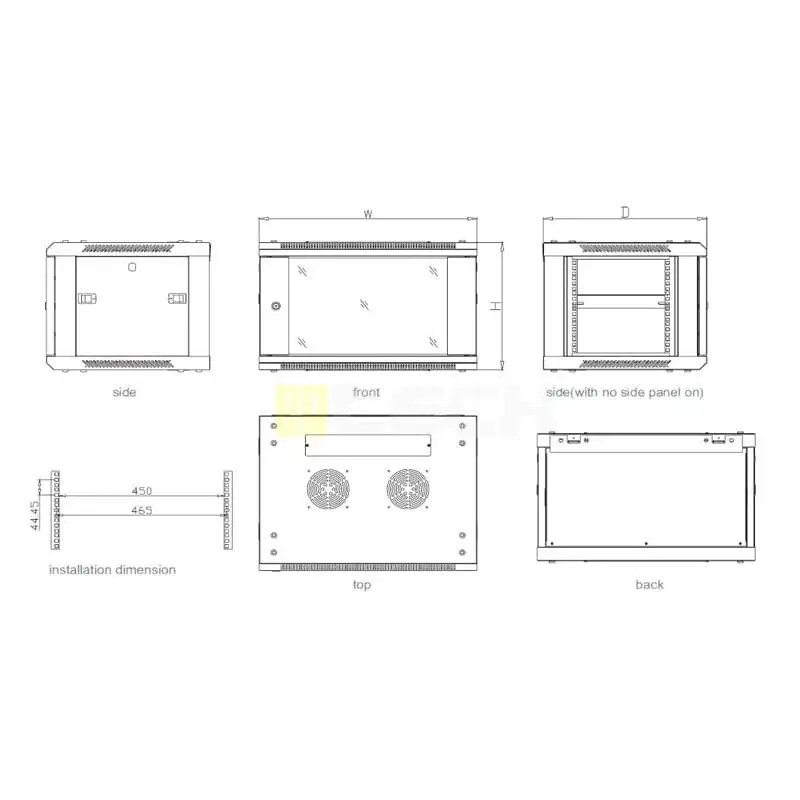

| Dimensions (W × D × H) | 600 mm × 450 mm × 300 mm |
| Static Load Capacity | 800 KG |
| Chassis Material Structure | Premium SPCC Cold-Rolled Steel |
| Front Door Assembly | 5 mm Tempered Glass Door with Cylinder Key Lock |
| Surface Finishing | Automated Degreasing, Pickling, Phosphating & Black (RAL9005) Coating |
| Thermal System | 1 × Active Cold-Rolled Steel Cooling Fan |
| Power Distribution | Built-in 6-Outlet PDU Socket Strip |
| Side Flank Access | Dual Independent Lockable and Removable Side Panels |
| Cable Management | Multi-Functional Back-Side Cable Routing Pathways |
Package Contents
- Cooling Elements: 1 × Cold-Rolled Steel Cooling Fan
- Power Elements: 1 × Power Distribution Unit (PDU) Strip with 6 Outlets
- Shelving: 1 × 1.2mm Cold-Rolled Steel Shelf
- Mounting Hardware: 20 × Cage Nuts and 1 × 1.2mm Wall Hanging Panel
- Chassis Framing: 2 × Main Frames, 4 × Profile Rails (1.5mm), 4 × Horizontal Brackets, and 2 × L-Shaped Panels
Recommended Applications
- Commercial Network Closets: Consolidating 24/48-port network switches and structured patch panels.
- CCTV & Surveillance Infrastructure: Securing multi-channel DVR/NVR recorders and surveillance power supplies.
- Telecommunications & VoIP: Housing IP PBX servers, telecom gateways, and fiber modems.
- Branch Office IT: Clean, wall-mounted deployment of enterprise routers and wireless controllers.
