ProRack 9U Deep Wall Mount Server Cabinet with Glass Door, 600×600mm (PR-W6609)
0,00 EGP
The ProRack 9U deep wall mount cabinet (PR-W6609) is constructed from cold-rolled steel with an 800KG static load rating and deep 600mm chassis. Outfitted with a 5mm tempered glass door and HP-39 lock, it includes a top cooling fan, heavy-duty 16A 3500W PDU, and an adjustable shelf.
Description
The ProRack 9U Deep Wall Mount Cabinet (PR-W6609) is an enterprise-grade, extra-depth IT enclosure designed to provide a secure and thermally optimized mounting environment for deeper network appliances and shallow servers.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | PR-W6609 |
| Rack Capacity | 9U (19-inch EIA-310-D Standard) |

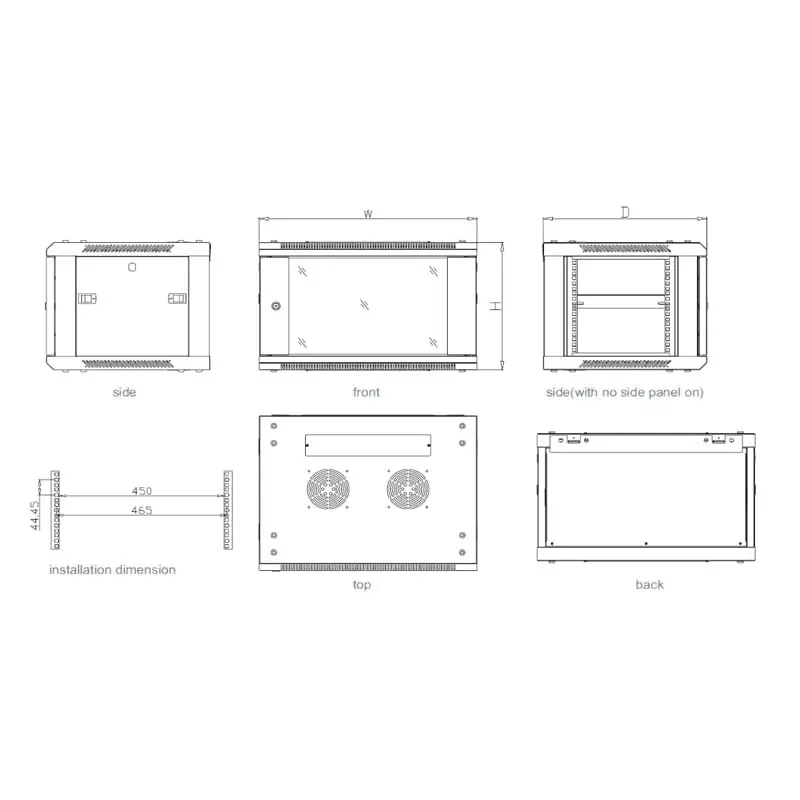

| Dimensions (W × D × H) | 600 mm × 600 mm × 500 mm |
| Static Load Capacity | 800 KG |
| Chassis Material | Industrial Cold-Rolled Steel |
| Front Door Assembly | 5 mm Tempered Glass Door with HP-39 Mechanical Safety Lock |
| Surface Finishing | Anti-Corrosion Phosphating & Black (RAL9005) Powder Coating |
| Thermal Dynamics | 1 × Active Cold-Rolled Steel Exhaust Fan |
| Power Management | Heavy-Duty 16A / 3500W PDU Socket Strip with 6 Outlets |
| Chassis Access | Dual Lockable and Detachable Side Flanks |
| Cable Routing | Multi-Functional Rear and Roof Cable Routing Panels |
Package Contents
- Cooling Accessories: 1 × Cold-Rolled Steel Exhaust Fan
- Power Elements: 1 × 16A 3500W Power Distribution Unit (PDU) Strip with 6 Outlets
- Shelving: 1 × Adjustable Cold-Rolled Steel Shelf
- Mounting Hardware: 20 × Heavy-Duty Cage Nuts and 1 × 1.2mm Wall Hanging Plate
- Structural Panels & Fasteners: 2 × Main Frames, 4 × Profile Rails (1.5mm), 4 × Brackets, 2 × L-Bars, 1 × Back Panel, and Full Fastener Set
Recommended Applications
- Deep Networking Gear: Housing full-depth managed PoE+ switches, enterprise firewalls, and routers.
- Shallow Rack Servers: Mounting short-depth 1U/2U server chassis and network-attached storage (NAS).
- Telecom & Fiber Distribution: High-density optical fiber patch panels, splice trays, and media converters.
- Commercial CCTV Closets: Securing multi-drive enterprise NVR units and backup UPS batteries.
