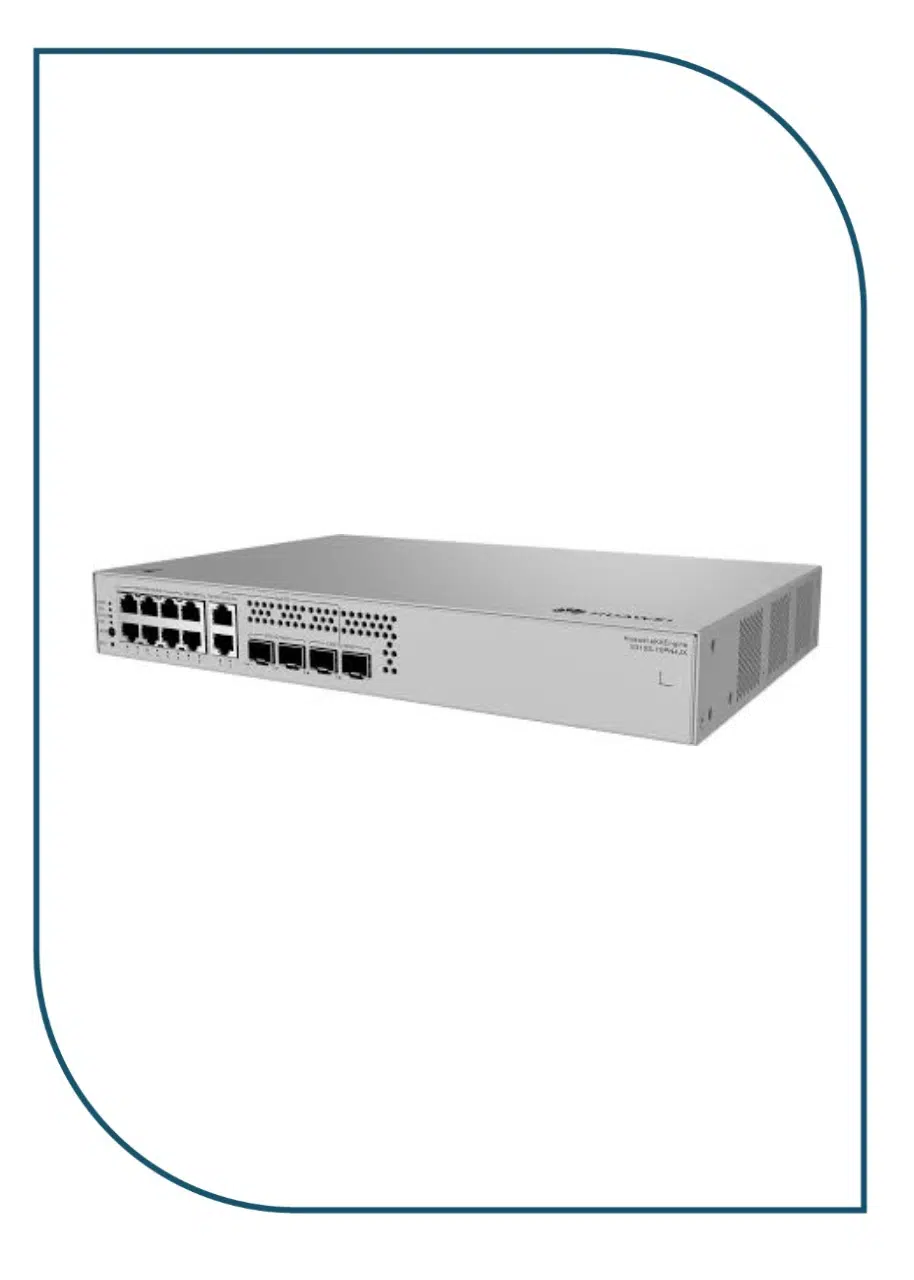

Huawei eKIT S310S-10PN4JX Multi-GE PoE+ Switch, 2x 2.5G Multi-GE, 2x 10GE SFP+ & 2x 2.5GE SFP (S220S-10PN4JX)
0,00 EGP
The Huawei eKIT S310S-10PN4JX switch features 6x Gigabit PoE+ ports, 2x Gigabit RJ45 ports, 2x 2.5G Multi-GE PoE+ ports, 2x 10GE SFP+ uplinks, and 2x 2.5GE SFP slots (76 Gbps switching, 57 Mpps). Built for high-speed Wi-Fi 6/7, it provides multi-rate copper and 10G optical speeds.
Description
The Huawei eKIT S310S-10PN4JX Multi-Gigabit Switch is a versatile enterprise access switch engineered with 2.5G Multi-GE copper ports, dual 10G SFP+ uplinks, and PoE+ power to deliver ultra-fast connectivity for Wi-Fi 6/7 access points and network servers.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | Huawei eKIT S310S-10PN4JX (S220S-10PN4JX) |
| Multi-Gigabit Ports | 2 × 10M/100M/1G/2.5G BASE-T Multi-GE PoE+ Ports |
| Gigabit Downlink Ports | 6 × 10/100/1000BASE-T PoE+ Ports + 2 × 10/100/1000BASE-T RJ45 Ports |
| Optical Uplink Interfaces | 2 × 10GE SFP+ Slots + 2 × 2.5GE SFP Optical Slots |
| Switching Capacity | 76 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 57 Mpps |
| PoE Standard | IEEE 802.3at PoE+ / IEEE 802.3af PoE Compliant |
| Management Interface | Huawei eKit Cloud, Web GUI, Full CLI via SSH/Console, SNMP |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
Package Contents
- Switch Unit: 1 × Huawei eKIT S310S-10PN4JX Multi-GE Switch
- Power Cable: 1 × Regional Heavy-Duty AC Power Cord
- Mounting Hardware: 1 × 19-Inch 1U Rackmount Bracket Kit with Screws
- Documentation: Quick Installation Guide
Recommended Applications
- Next-Gen Wi-Fi 6/7 Access: 2.5G Multi-GE copper ports delivering multi-gigabit speeds and PoE+ to APs.
- 10G Server & Storage Links: Dual 10G SFP+ optical ports uplinking directly to core SAN and server clusters.
- Commercial Office Convergence: Connecting PoE cameras, phones, and high-speed multi-rate workstations.
- Hybrid Fiber-Copper Workgroups: Combining 2.5G copper, 2.5G SFP, and 10G SFP+ in a single compact switch.
