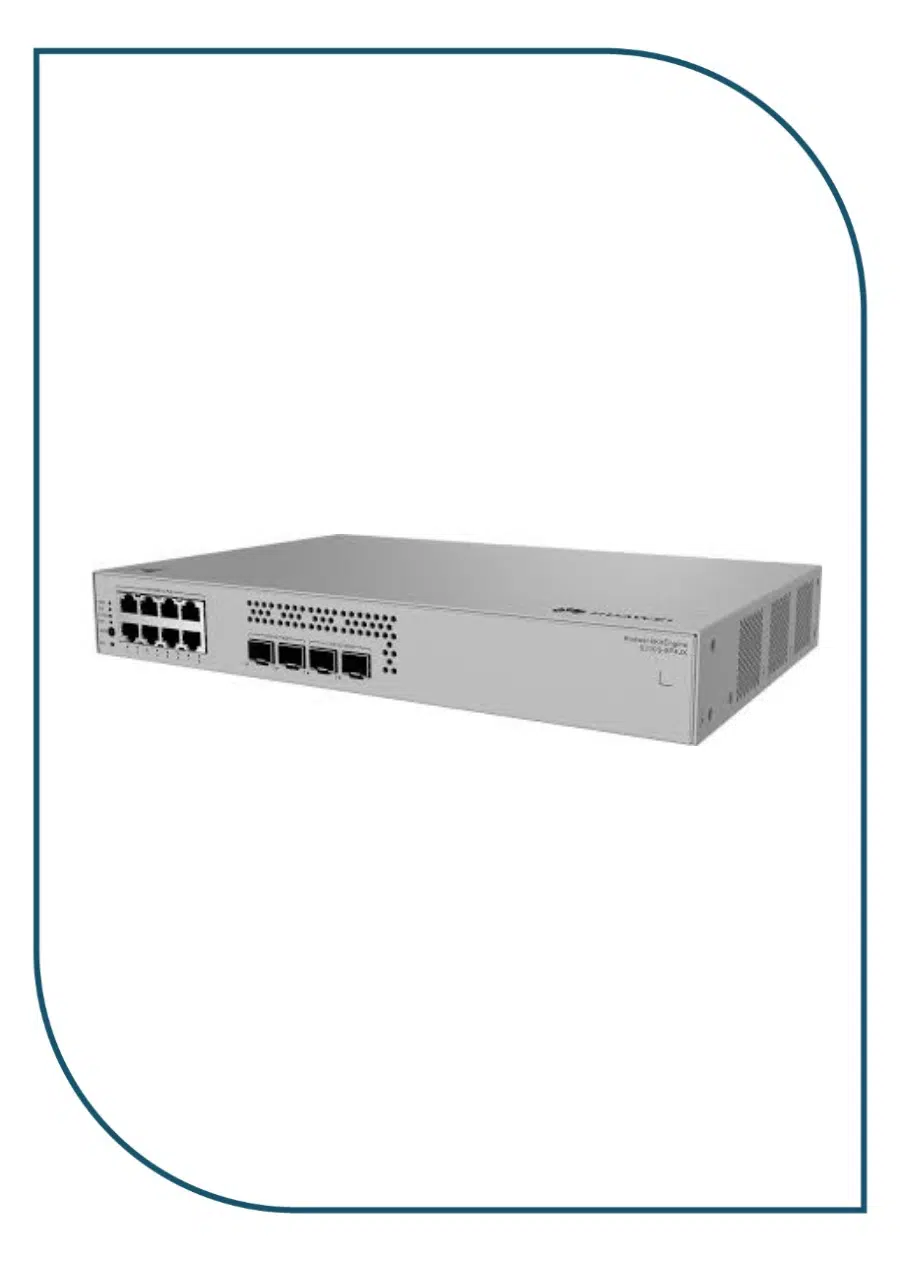

Huawei eKIT S310S-8P4JX / S220S-8P4JX PoE+ Switch, 8-Port Gigabit (128W), 2x 10GE & 2x 2.5GE SFP (S220S-8P4JX)
0,00 EGP
The Huawei eKIT S310S-8P4JX managed switch features 8 Gigabit PoE+ ports (128W budget), 2x 10GE SFP+ uplinks, and 2x 2.5GE SFP slots with a 66 Gbps switching capacity and 49 Mpps forwarding. Built for high-speed edge distribution, it delivers maximum optical flexibility.
Description
The Huawei eKIT S310S-8P4JX Managed PoE+ Switch is a high-bandwidth access switch engineered with 128W of PoE+ power, dual 10G SFP+ ports, and dual 2.5G SFP slots to provide versatile optical connectivity for modern enterprise networks.
Technical Specifications & Core Features
| Specification / Feature | Technical Details |
|---|---|
| Model / SKU | Huawei eKIT S310S-8P4JX (S220S-8P4JX) |
| Downlink Ports | 8 × 10/100/1000BASE-T Gigabit Ethernet Ports (802.3at/af PoE+) |
| PoE Power Budget | 128W Dedicated PoE+ Power Budget |
| Uplink Interfaces | 2 × 10GE SFP+ Slots + 2 × 2.5GE SFP Optical Slots |
| Switching Capacity | 66 Gbit/s Wire-Speed Bandwidth |
| Packet Forwarding Rate | 49 Mpps |
| Layer 2+ Features | VLANs, Link Aggregation, STP/RSTP/MSTP, IGMP Snooping, Port Isolation |
| Management Platform | Huawei eKit Cloud, Web GUI, Full CLI via SSH/Console, SNMP |
| Form Factor | Standard 1U 19-Inch Rackmount Metal Chassis |
Package Contents
- Switch Unit: 1 × Huawei eKIT S310S-8P4JX PoE+ Switch
- Power Supply: 1 × Regional AC Power Cable
- Mounting Hardware: 1 × 19-Inch 1U Rackmount Bracket Kit with Screws and Rubber Feet
- Documentation: Quick Installation Guide
Recommended Applications
- 10G Aggregation Networks: Direct 10G fiber uplinks to core switches combined with 2.5G edge links.
- Enterprise Wi-Fi 6 Powering: Supplying PoE+ power to high-throughput wireless access points.
- Commercial CCTV Security: Powering 8 IP surveillance cameras with dual 10G/2.5G NVR links.
- Multi-Branch Cloud Management: Centralized provisioning and monitoring via the Huawei eKit platform.
